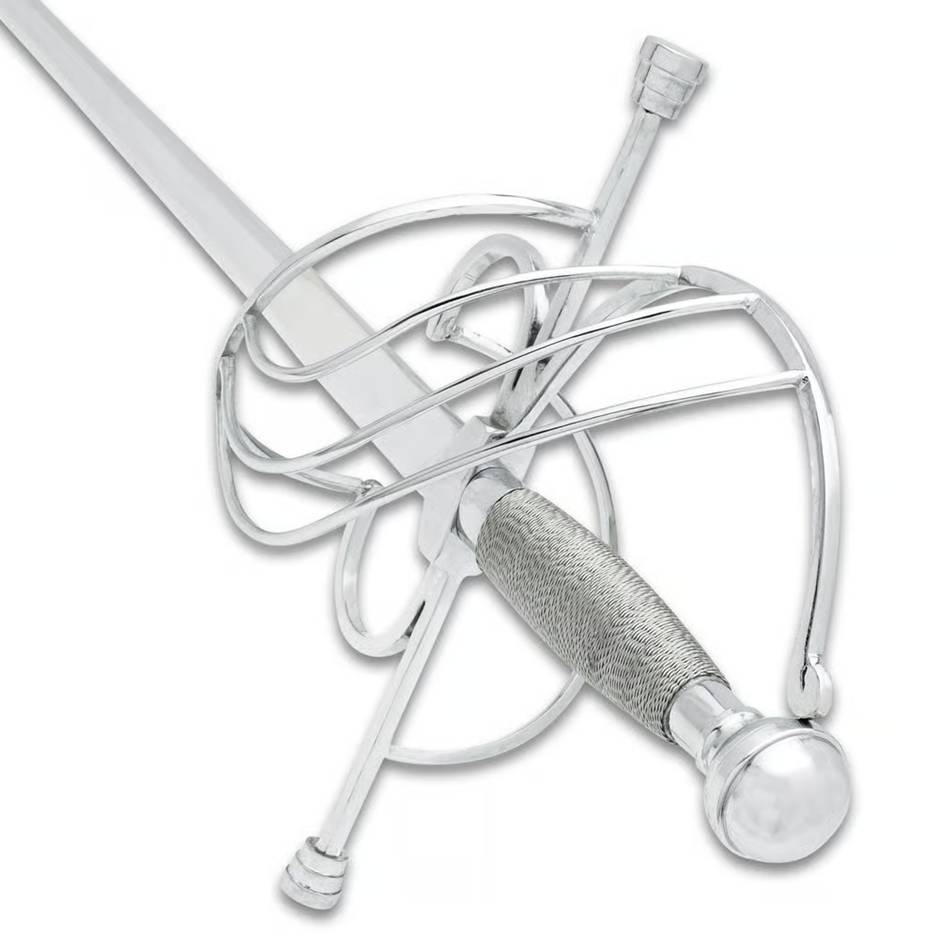

The rapier is a long, thin sword with a needle point profile that is designed primarily for thrusting, rather than for powerful slashing maneuvers. It has a light, nimble blade and generally a heavier hilt that protects the wielder’s hand while also keeping the point of balance closer to the hilt, which facilitates much greater control over the point of the sword. That being the case, while rapiers are well known for their ornate hilts that generally provide a very good degree of protection to the hand, not all rapier hilts are the same. Here are some of the most common hilt styles.

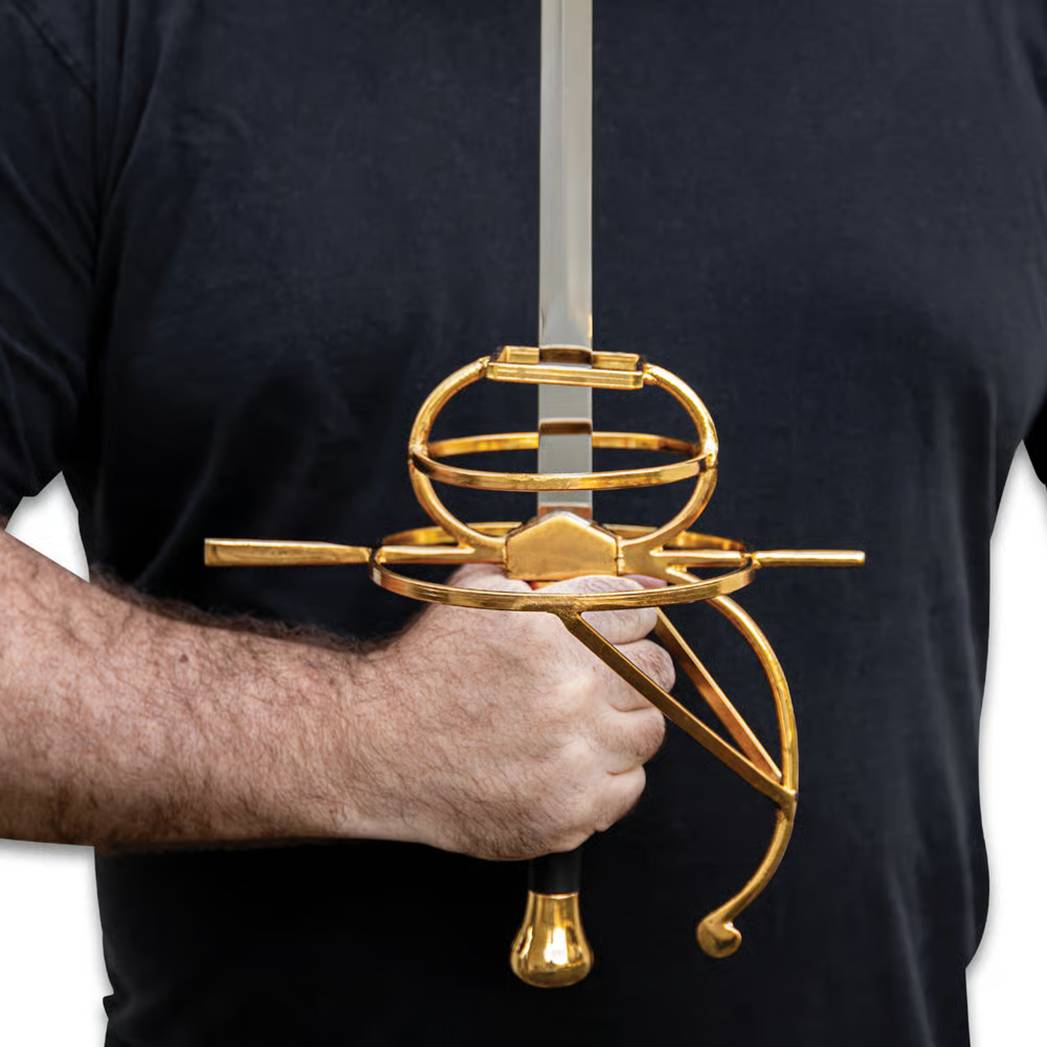

The term “swept hilt” is very commonly applied to rapiers and actually encompasses a few other hilt styles that will be covered below, which are full, three-quarter, half and quarter hilt design. The swept hilt is so termed because of its graceful, sweeping lines that originate at the ricasso or crossguard and encompass the whole hand and hilt, reaching to the pommel. These lines form a sort of basket that encases and protects the wielder’s hand, despite the fact that they appear to be slight and fragile. So let’s take a closer look at some subcategories of swept hilts.

The full hilt is the basic swept hilt design that provides arguably the highest degree of protection. In a full hilt configuration, there should be a separate crossguard with a knuckle guard along with several finger rings that start at or before the crossguard and which sweep over the hilt, reaching all the way down to the pommel.

A three-quarter hilt is slightly more open than a full hilt and has either two or three finger rings; one of the quillions sweeps upward towards the blade and the other curves downward to form the knuckle guard.

A half hilt is even more open than a three-quarter hilt; this pattern should have a traditional crossguard quillion with a finger ring to protect the fingers as well as two side rings.

The quarter hilt is a basic rapier hilt design that sports a crossguard as well as finger rings on the ricasso. In this configuration, the hilt has a lower side ring on the ricasso that connects with the finger rings outside the blade.

The shell guard is more of a feature of a rapier hilt than it is a distinct style since it is often found on full hilt (full swept hilt) rapiers. A shell guard, or a pair of shell guards, as is also common, is among the most distinctive features of some rapier hilts. Where there is a shell guard present, it will be placed at one or both sides of the ricasso at the top of the hilt where it meets the blade. Often these shell guards are patterned after cockleshells and are deeply ribbed. This configuration encloses the top of the hilt and offers an excellent degree of protection to the wielder’s hands.

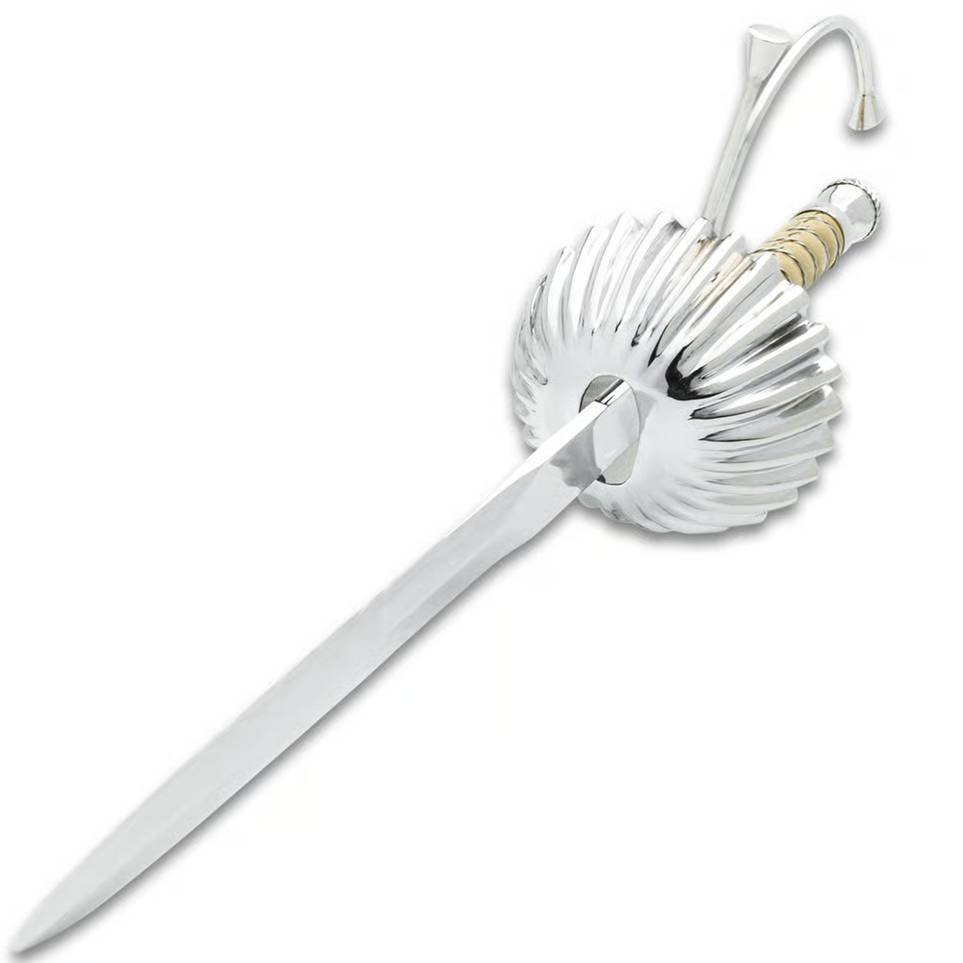

The cup hilt configuration offers one of the highest degrees of protection possible to a wielder’s hands. In a cup hilt, there are still quillions and generally there is still a knuckle guard, but there is also a cup at the top of the hilt that fully encloses the hand. Some feature a turned over rim called a romepuntus that was designed to catch the tip of an opponent’s sword. The cup hilt design was popular in Spain and Italy in the 1600s and often the cup was elaborately graven with sylvan motifs like flowers or leaves, or had a scalloped edge, or both. Despite the fact that the cup hilt rapier offered an excellent level of protection to the hand, it added a lot of weight to the sword, making it uncomfortable to wear and difficult to carry.

A loop hilt rapier is one of the more minimalistic designs and looks a lot more like what you’d expect from most sabers than from a rapier. Nonetheless, in a loop hilt rapier, the quillions are shortened and one of them extends to a knuckle guard that becomes a loop that reaches to the pommel. As a result, while the loop guard is rarely as elaborate or ornate as a swept hilt and lacks the rings, it still offers a reasonable degree of protection to the wielder’s fingers.
